S871

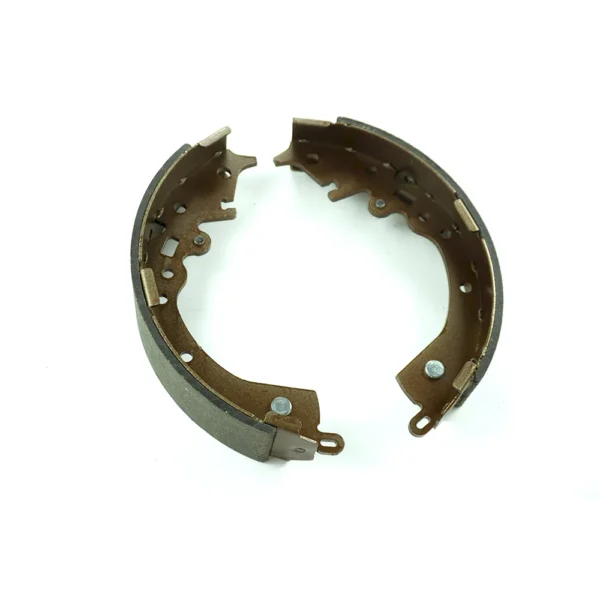

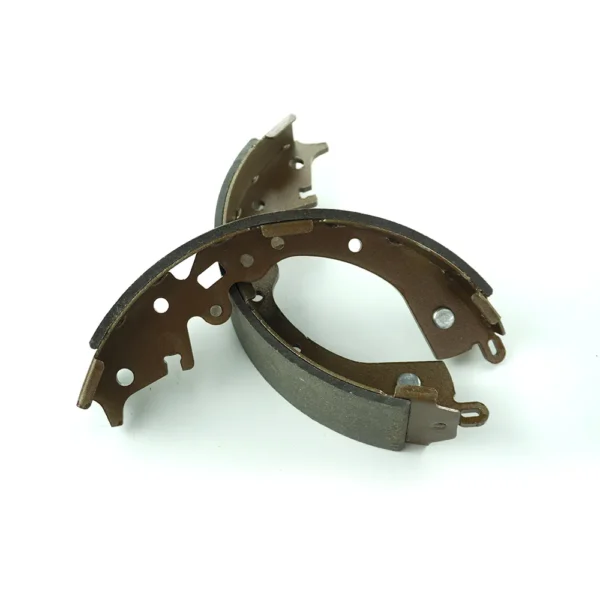

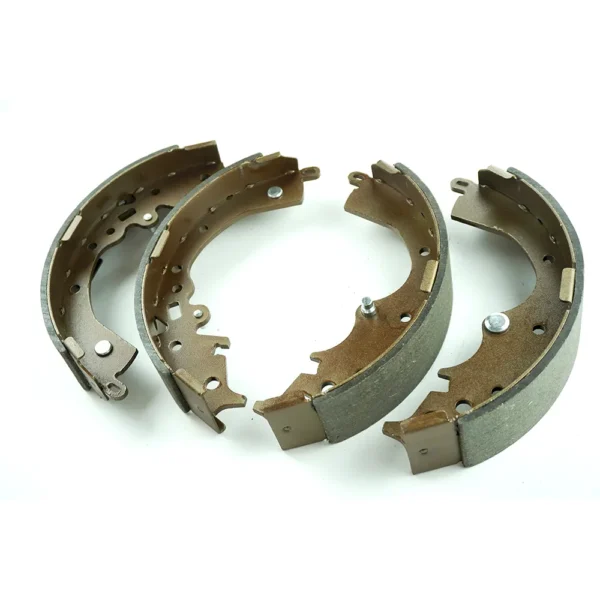

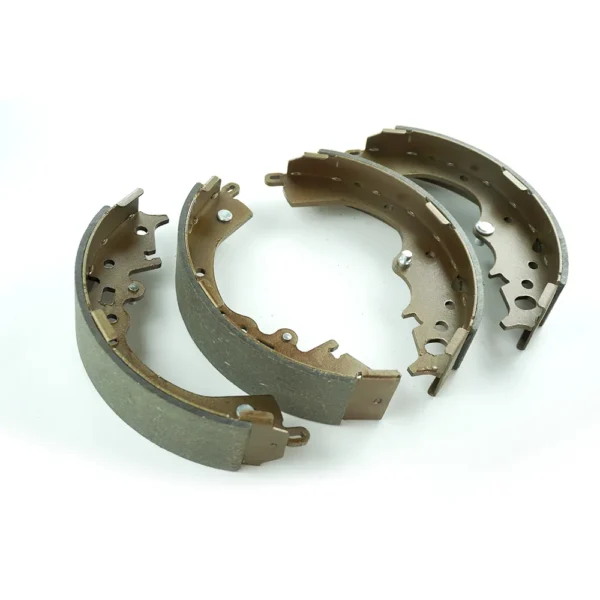

The S871 drum brake shoes are compatible with the rear drum braking systems of various Japanese light-duty trucks and pickup trucks, providing both driving brakes and parking brakes. The product is manufactured using precision-molded components according to original manufacturer standards; the brake shoe body is constructed from thickened, high-strength stamped steel plates paired with high-performance composite friction linings, ensuring a stable and reliable coefficient of friction. These brake shoes are suitable for applications such as short-distance freight transport and frequent start-stop cycles, offering a linear and smooth braking feel while effectively reducing vibration and abnormal noises; they exhibit outstanding wear resistance and excellent thermal degradation resistance. As standardized complete sets of replacement parts, they can be installed directly in place of the original components without requiring any modifications. They provide stable braking force across a wide range of road conditions, ensuring safe driving and braking performance for light commercial vehicles.

1. Brake shoes should be replaced as complete pairs; replacing only one side is prohibited.
2. Before installation, clean the interior of the brake drum of oil stains, rust, and brake dust.
3. When the friction lining wears down to its maximum thickness, the entire set should be replaced promptly.
4. Lubricating oil must not contaminate the friction linings to prevent brake failure.
5. After loading new components onto the vehicle, perform low-speed warm-up; avoid using emergency braking during the initial phase.
6. During assembly, simultaneously inspect the return spring and the adjustment mechanism for any jamming.
7. After installation is complete, adjust the brake clearance to ensure that the wheels rotate without any drag.
