K6741

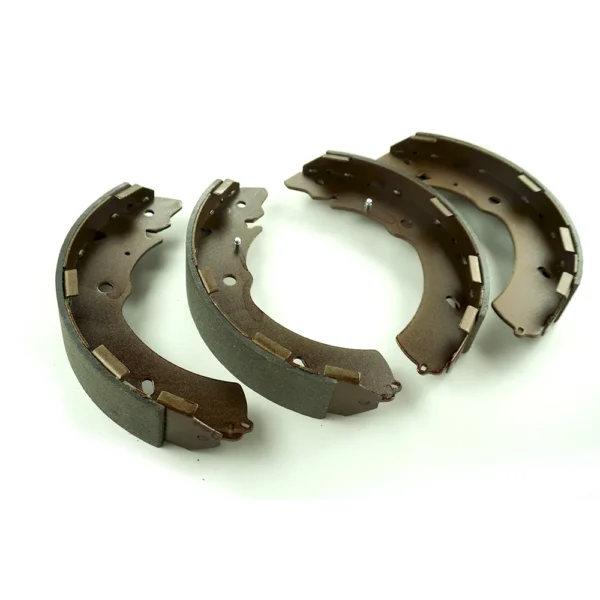

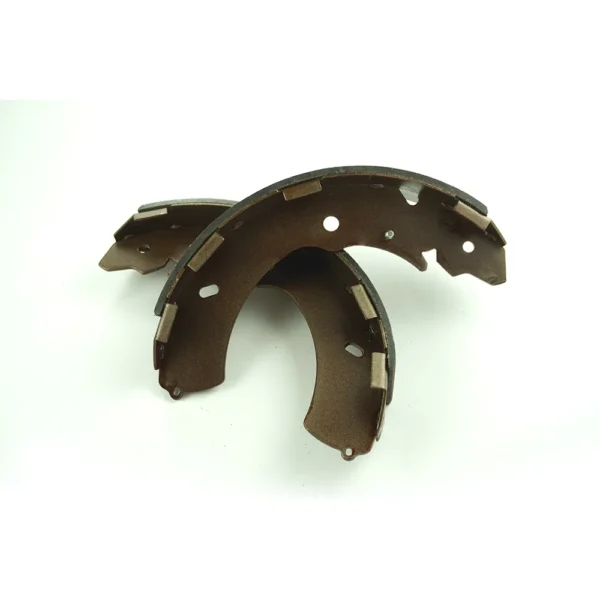

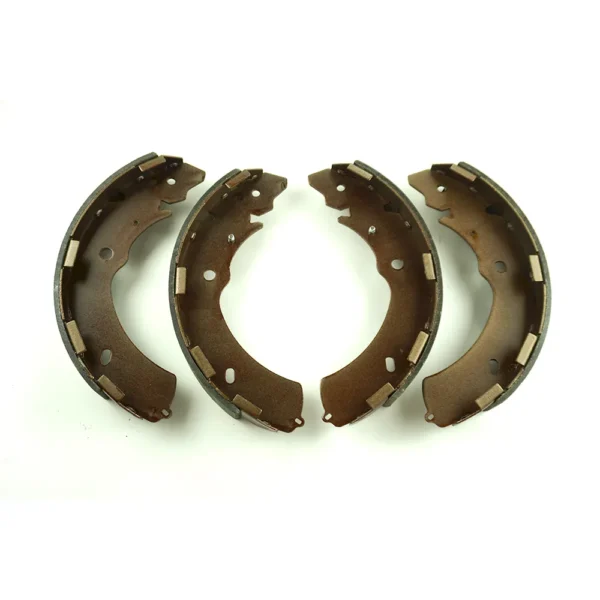

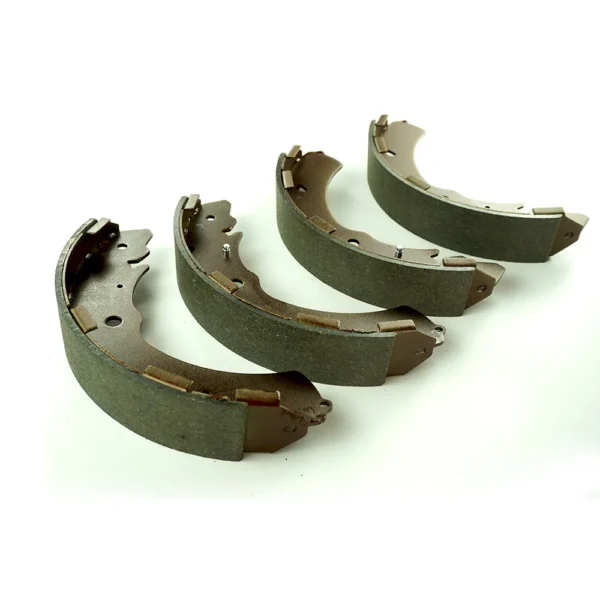

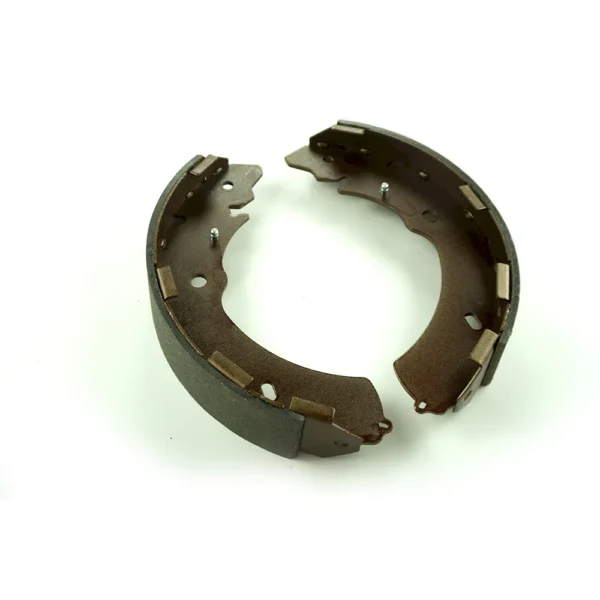

The K6741 drum brake shoe is compatible with the rear drum braking systems of various Japanese light-duty trucks and pickup trucks, serving as a core component for both driving and parking brakes. The product is manufactured using molds based on original factory specifications; the brake shoe body is constructed from thickened, high-strength stamped steel plates paired with high-performance composite friction linings, ensuring a stable friction coefficient. Designed to withstand heavy loads and frequent start-stop cycles, this brake shoe provides smooth braking response, effectively suppresses brake noise and vibration, and exhibits excellent resistance to high temperatures and thermal degradation. As a standard complete set of replacement parts, it allows for non-destructive replacement of original vehicle components without requiring any modifications. It can consistently and stably deliver braking force, adapt to diverse road conditions encountered in both urban and rural freight transportation, significantly enhance braking reliability, and ensure the operational safety of the vehicle.

1. Brake shoes should be replaced as complete pairs; replacing only one side is prohibited.
2. Before installation, clean the brake drum of oil stains, rust, and brake dust.
3. When the friction lining wears down to its maximum thickness, replace the entire set promptly.
4. Lubricating oil must never come into contact with brake pads to avoid causing brake failure.
5. After loading, perform low-speed warm-up; in the short term, try to avoid emergency braking as much as possible.
6. During assembly, perform a synchronous inspection to verify that the return spring and gap adjuster are in good condition.
7. After assembly completion, adjust the brake clearance; the wheel should rotate smoothly without any drag.
