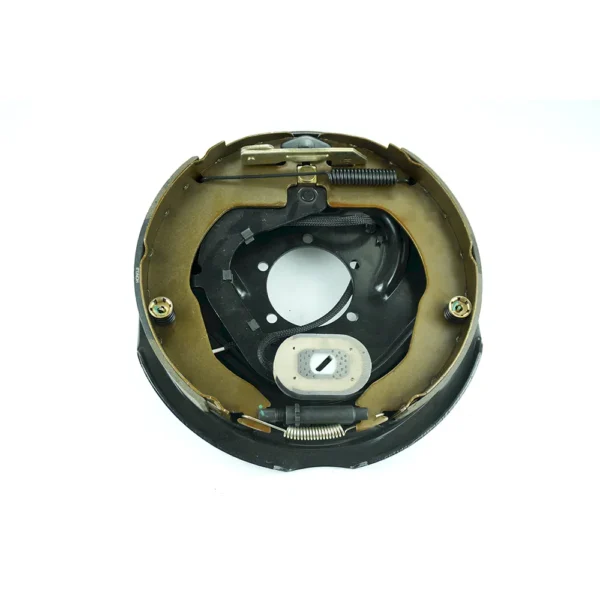

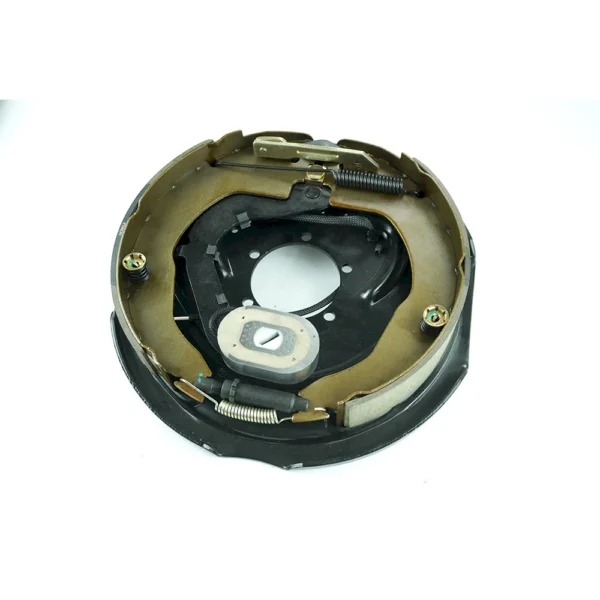

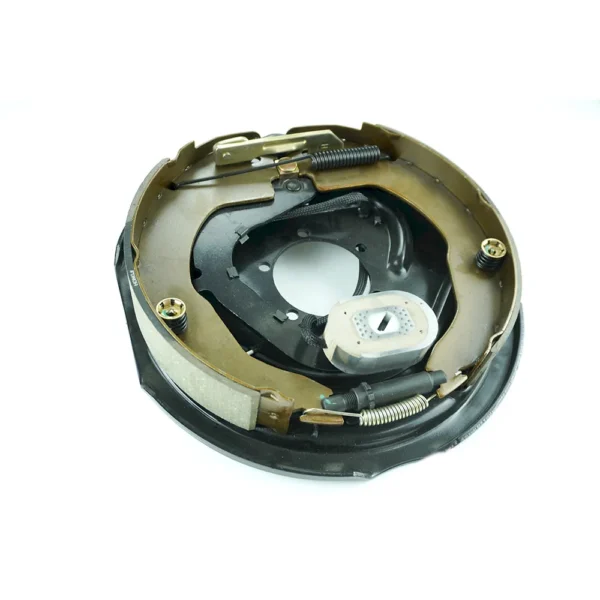

12-inch Off-Road Battery-Powered Handbrake System

Key Features

The field version features enhanced sealing structure for dust, water, and sediment resistance.
Battery-powered electronic handbrake ensures stable parking on steep off-road slopes without skidding
Seismic reinforcement assembly ensures enhanced structural stability under off-road bumpy conditions
12-inch large brake drum for enhanced off-road heavy-load braking performance

Product Overview

The 12-inch off-road battery-powered handbrake brake is specifically designed for trail towing, off-road RVs, and trailers operating on un paved surfaces such as deserts, gravel, or muddy terrain. It features a reinforced structure resistant to dust, water, and vibration; combines a battery-powered electronic parking brake with an electromagnetic service brake to withstand road bumps, mud immersion, and sand erosion, while offering enhanced impact resistance—making it ideal for hardcore off-road towing modifications.

Core Specification

project	Specification Details
specified load	12,000 LB (off-road grade with a maximum load capacity of 12,000 pounds)
type	12-inch drum-type off-road enhanced version battery-powered electromagnetic handbrake (combining electronic parking brake and off-road driving brake)
caliber	4.5-inch thick cylindrical tube beam with heavy load-bearing capacity
Process Flow	Enhanced process: casting → machining → thickening; off-road corrosion-resistant spray coating + electrophoretic treatment; followed by off-road-grade sealing, waterproofing, and seismic resistance testing.
Hub nut	9/16″–18 UNF American-made high-strength flange nut, suitable for 8-hole off-road heavy-duty wheels
customization	Supports custom CAD drawings

Matters Need Attention

Included Parts

2 × 12K off-road-grade sealed pre-lubricated bearing kits
12-inch wheel hub + off-road battery handbrake assembly with dust shield
4.5-inch thick off-road axle beam and waterproof, shock-resistant wiring harness
9/16–18 High-Strength Wheel Hub Nuts

Off-road trailers for recreational RVs; desert/sandstone off-road trailers
High-performance off-road trailers and modified tow vehicles for outdoor use
Modification and upgrade of the braking system for 12K off-road heavy-duty vehicle axles

Maintain (Service)

After crossing rivers, water obstacles, or muddy terrain, clean the external mud and debris from the brakes and inspect the seals as well as the waterproofing of the wiring harnesses.
Conduct quarterly inspections of brake shoe wear, electronic handbrake performance, and bearing seal condition.
Recheck the wheel hub nut tightening torque after driving over rough or bumpy road sections
Lubricate the bearings regularly and inspect the waterproofing and shock resistance of the electrical control circuits.

Off-road-resistant structure with enhanced earthquake and dust resistance, providing superior durability on unpaved surfaces

Electronic battery-powered handbrake ensures more stable parking on steep off-road slopes.

Equipped with a robust heavy-load braking system, ensuring reliable off-road performance under heavy loads.

Reduces off-road bumps and vibrations for safer towing

Designed to meet the modification needs of high-performance off-road trailers.

Reduce the frequency of maintenance required for troubleshooting in off-road environments.
