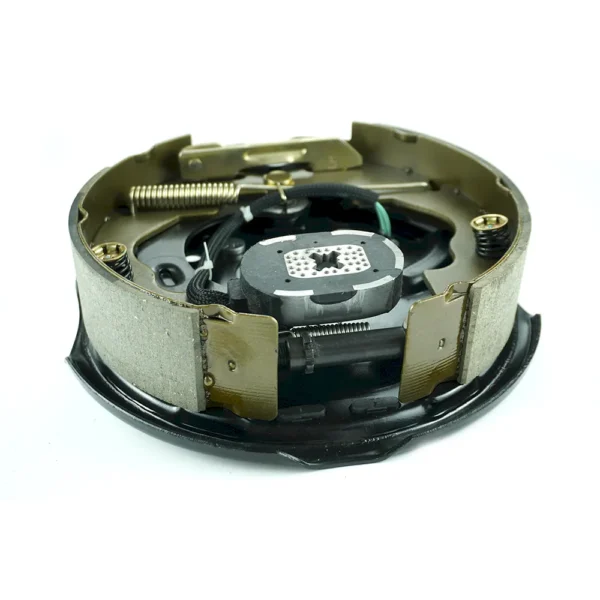

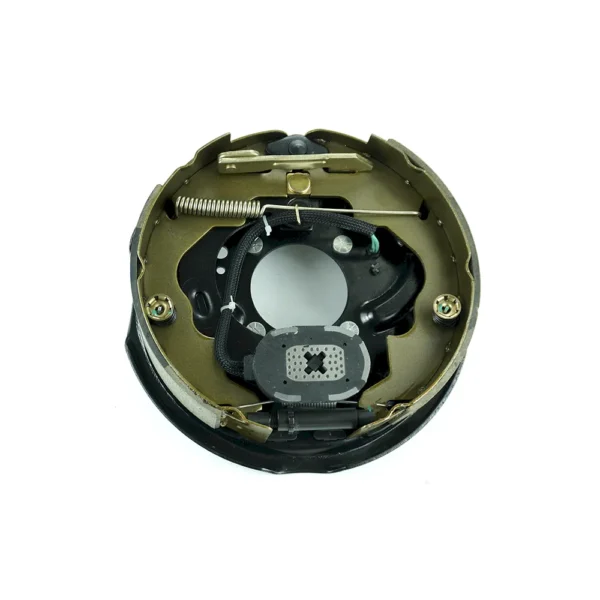

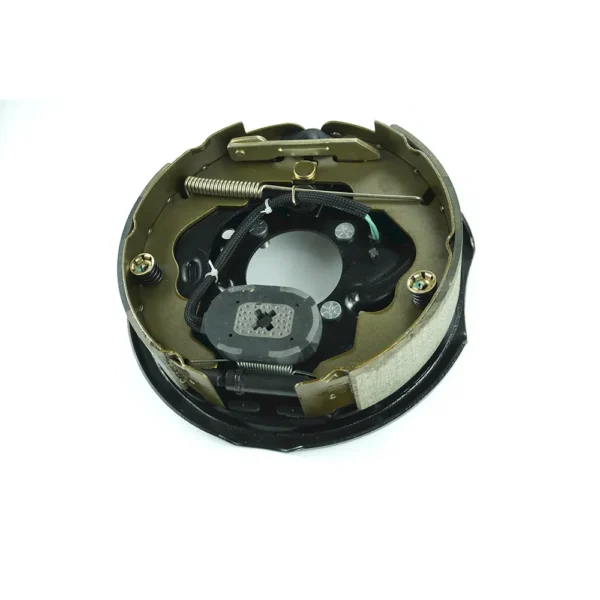

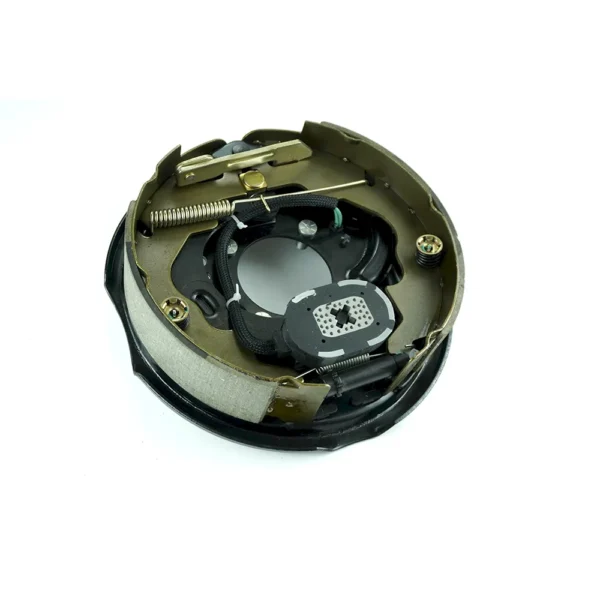

10-inch Off-Road Battery-Powered Handbrake System

Key Features

Electromagnetic battery-powered parking handbrake ensures stable off-road parking
Enhance protection measures against off-road conditions, including dust, mud, and water exposure.
10-inch American standard size, highly versatile for customization
Dual-function braking system combining driving brake and parking brake

Product Overview

The 10-inch off-road battery-powered handbrake brake is specifically designed for off-road trailers, recreational trailers, and outdoor adventure trailers. It features a dual-function design combining an electromagnetic battery-powered parking handbrake with a driving brake system, equipped with a 10-inch drum-type brake assembly and enhanced dust-proof and waterproof construction to withstand off-road conditions including unpaved surfaces, mud, gravel, and humid environments. The power-operated braking mechanism ensures reliable locking, while the driving brake provides smooth operation; the reinforced housing offers excellent impact resistance and protection against sand erosion, making it the ideal braking assembly for off-road towing modifications.

Core Specification

project	Specification Details
specified load	3500LB
type	10-inch drum-type, off-road version; battery-powered parking electromagnetic handbrake system
caliber	Main shaft for 2.5-inch (63.5 mm) round tube wheel
Process Flow	Cast molding → Precision machining → Heat treatment for strengthening → Thickening via electrophoresis and spray coating with off-road-grade corrosion resistance → Inspection of assembly airtightness and parking brake performance
Hub nut	Hole spacing: 5×4.5 mm or 6×5.5 mm
customization	Supports customizing CAD/DWG drawings

Matters Need Attention

Included Parts

2 × 3.5K pre-lubricated off-road bearing sleeve kits
10-inch wheels with battery-powered electromagnetic handbrake system (5×4.5/6×5.5 bolt holes)
2.5-inch axle beam with off-road protection and dust cover
9/16-inch wheel bolts, flange nuts, electromagnetic parking cable harness assembly

Using a tow truck to cross obstacles; parking and applying the vehicle’s brakes when passing through RVs.
Outdoor off-road operation trailers; agricultural trailers for use in muddy or gravelly terrain
Modification and replacement of axles for 3,500-pound off-road trailers

Maintain (Service)

After use in muddy or waterlogged conditions, clean the external mud and debris from the brakes and inspect the seals and wiring harness for waterproof integrity.
Conduct quarterly inspections of brake shoe wear, electromagnetic parking performance, spring elasticity, and wheel hub sealing integrity.
Overloading and off-road driving are strictly prohibited to protect the axle body, bearings, and braking components.
Regularly inspect the waterproofness of battery power supply lines and lubricate bearings periodically.

Enhanced off-road structure for more stable braking on rough terrain.

Dustproof, waterproof, and corrosion-resistant design for extended service life in off-road environments.

Integrated electronic handbrake for easy installation and routine maintenance

Reduce driving vibrations for safer and smoother off-road towing

Adapted to various modification requirements for off-road trailers.

Reduce maintenance frequency and save long-term operating costs

Version 2: 10-inch self-adjusting brake (standard American-style model)
