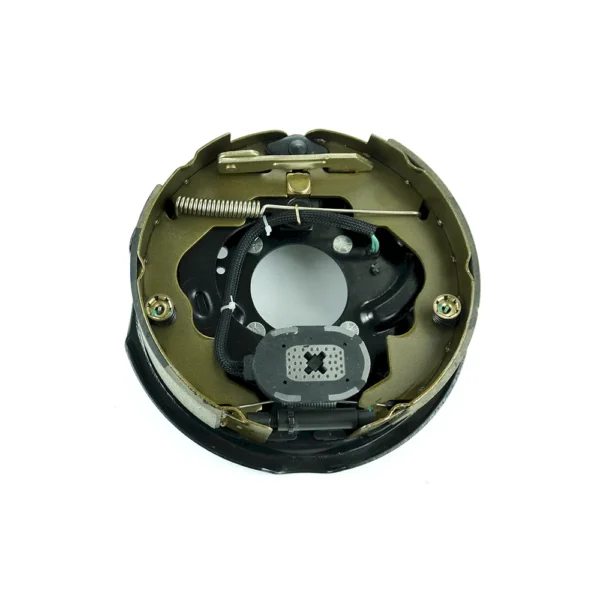

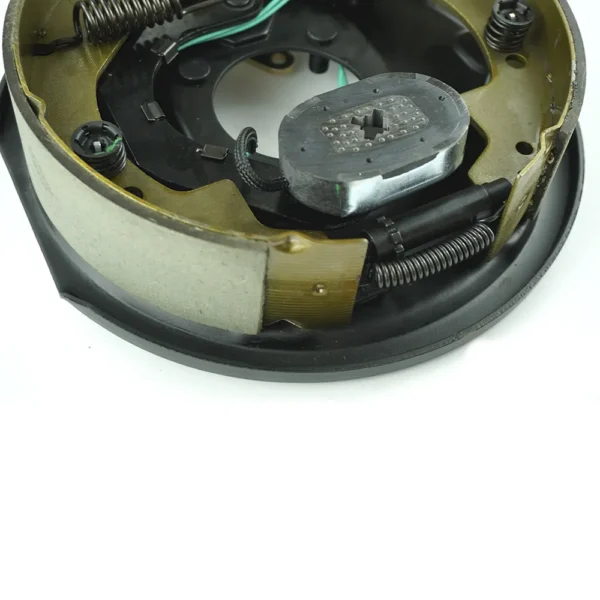

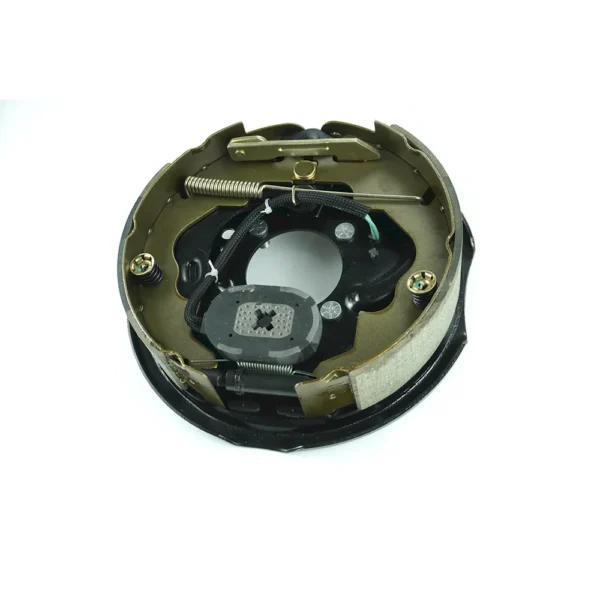

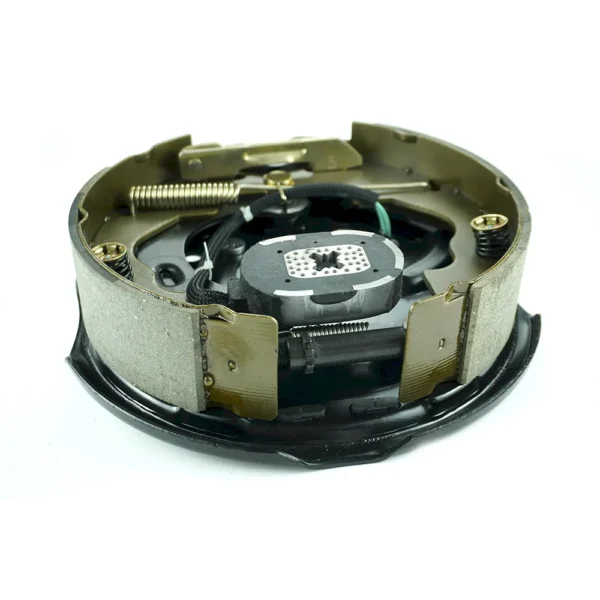

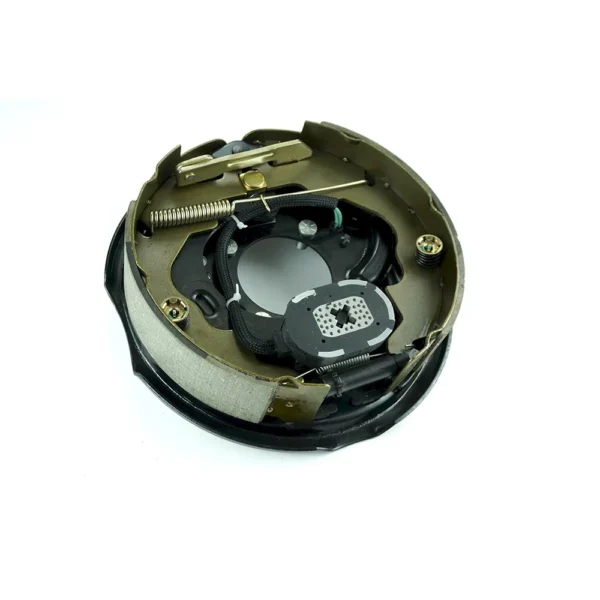

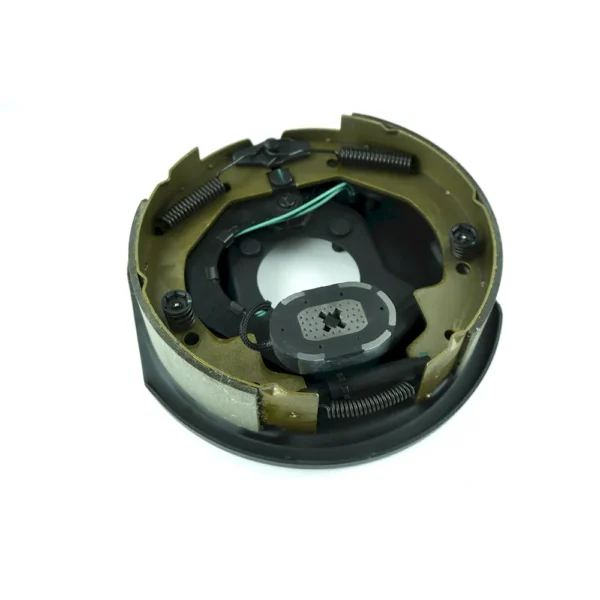

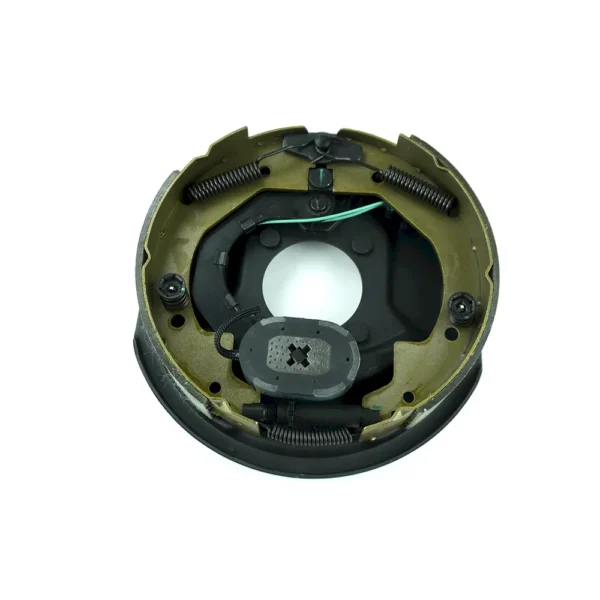

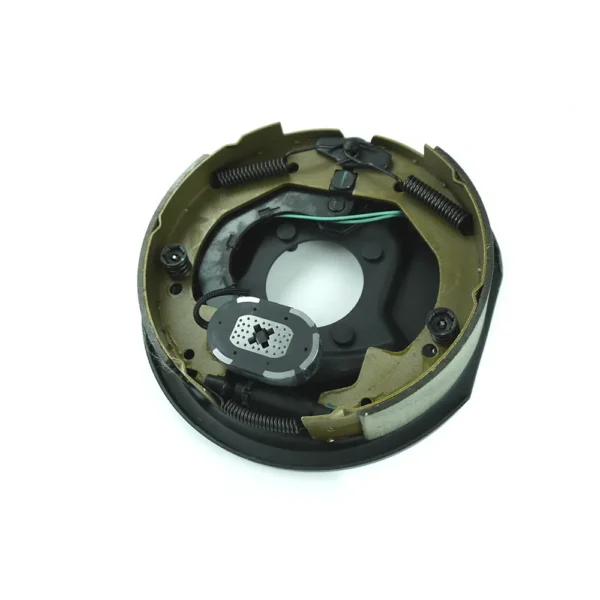

10″ 3.5K electric brake

Key Features

Manual adjustable clearance with controllable braking force
Standard 10-inch American size with high versatility
Dual-layer anti-corrosion technology for exceptional durability in outdoor environments
Simple and robust structure with low maintenance costs

Product Overview

The 10-inch American-style manually adjustable drum brake is designed for 3,500-pound class light recreational RVs, agricultural trailers, and light freight trailers. It features a standard 10-inch brake drum with manually adjustable brake shoes, allowing precise adjustment of braking clearance and providing controllable braking force. With a robust and reliable structure and a corrosion-resistant housing, it is ideal for outdoor towing conditions such as wilderness, humid environments, and construction sites, making it the classic braking assembly for traditional American-style light trailers.

Core Specification

project	Specification Details
specified load	3500LB
type	10-inch drum-type hand-adjustable brake (for manual adjustment of brake shoe clearance; part of an American-style trailer drum brake assembly)
caliber	Main shaft for 2.5-inch (63.5 mm) round tube wheel
Process Flow	Cast molding → Precision machining → Quenching and tempering heat treatment → Double-layer corrosion protection (electroplating + hot-dip galvanizing) → Assembly and factory-level brake performance testing
Hub nut	Hole sizes: 5×4.5 inches or 6×5.5 inches
customization	Supports customizing CAD/DWG drawings

Matters Need Attention

Included Parts

2 × 3.5K pre-lubricated bearing kits
10-inch wheels with manually adjustable brakes (5×4.5/6×5.5 inch wheel spacing)
2.5-inch shaft beam
9/16-inch wheel hub bolts, flange nuts, and manual adjustment paddle assembly

Braking systems for light and medium-duty cargo trailers, as well as recreational motorhomes
Small agricultural trailers and outdoor work trailers (corrosion-resistant, durable, and easy to operate)
Original factory replacement and modification upgrades for 3,500-pound class axles

Maintain (Maintenance Requirements)

After use in muddy or rainy conditions, clean the brake chamber and hub sealing areas to extend service life.
Perform quarterly inspections of brake shoe wear, spring elasticity, and wheel hub sealing integrity, and manually adjust the brake clearance as needed.
Overloading is strictly prohibited to protect the shaft, bearings, and brake shoe structure.
Apply lubricating grease to the bearings regularly according to their service cycle to prevent damage from dry friction.

Sturdy structure with stable load-bearing capacity, ensuring smoother braking during towing.

Corrosion-resistant and wear-resistant treatment for extended service life in outdoor environments

The robotic arm features a adjustable structure, facilitating easier installation, inspection, and clearance adjustment.

Reduce driving vibrations for safer and smoother towing

Compatible with various specifications of light and medium-sized trailers.

Reduce maintenance frequency and save long-term operational costs
