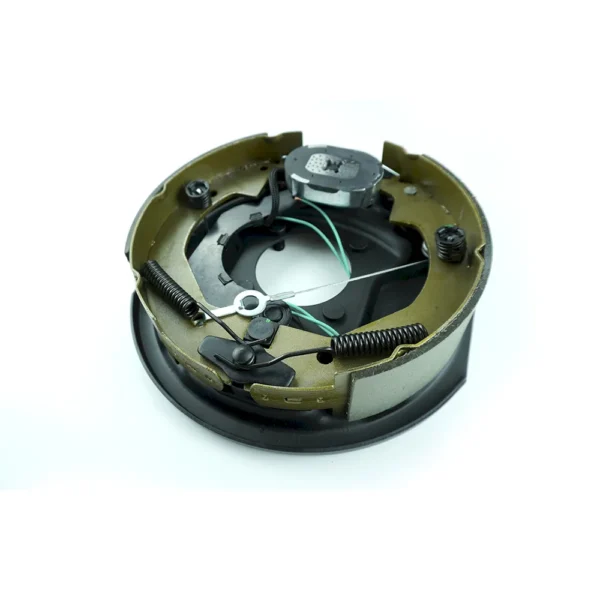

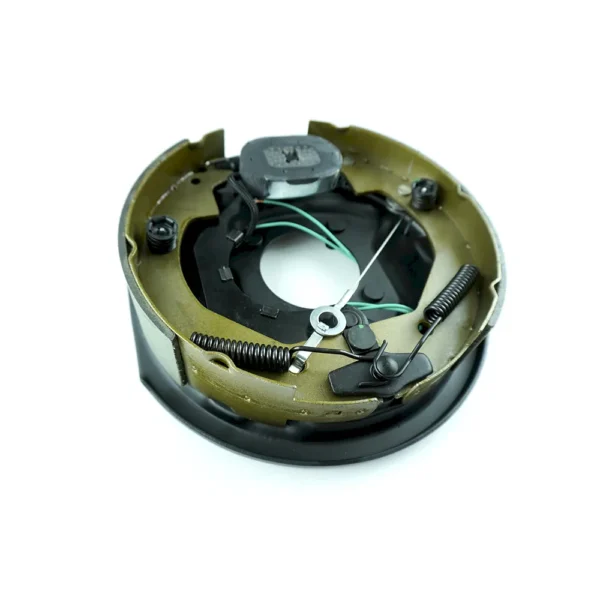

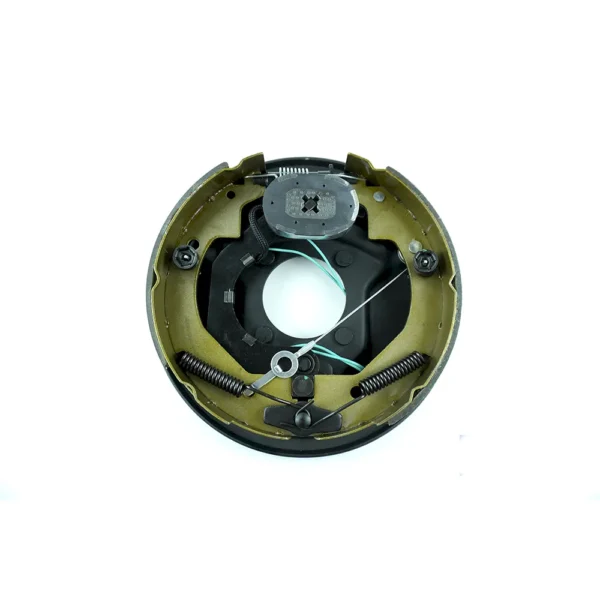

10″ 3.5K electric brake self adjusting

Key Features

Automatic gap adjustment, eliminating the need for frequent manual brake adjustment
10-inch industry-standard size with high versatility
Long-lasting anti-corrosion technology with excellent durability for outdoor applications
Standardized modular assemblies for hassle-free maintenance

Product Overview

The 10-inch American-style self-adjusting drum brake is the standard braking assembly for 3,500-pound RVs, light-duty cargo trailers, and agricultural trailers. Equipped with an automatic clearance adjustment mechanism that automatically compensates for brake clearance wear during operation, it ensures consistent and stable braking performance over extended use. Featuring an electromagnetic parking brake design, a rust-and corrosion-resistant housing, and standardized construction, it is suitable for both regular paved road conditions and mild outdoor towing scenarios.

Core Specification

project	Specification Details
specified load	3500LB
type	10-inch drum-type self-adjusting brake
caliber	Main shaft for 2.5-inch (63.5 mm) round tube wheel
Process Flow	Cast molding → CNC precision machining → Quenching and tempering heat treatment → Electroplating + hot-dip galvanizing for corrosion resistance → Assembly; factory inspection of self-adjusting braking performance
Hub nut	(5×4.5 inch or 6×5.5 inch hole spacing)
customization	Supports customizing CAD/DWG drawings

Matters Need Attention

Included Parts

2 × 3.5K pre-lubricated bearing kits
10-inch wheels with self-adjusting electromagnetic braking system (5×4.5/6×5.5 hole spacing)
2.5-inch shaft beam
9/16-inch wheel hub bolts, flange nuts, and self-adjusting valve stem assembly

Conventional braking systems are required for light and medium-duty freight trailers as well as recreational motorhomes.
Small agricultural trailers; standard outdoor-duty trailers
Replacement and upgrade of original factory axles for vehicles in the 3,500-pound class

Maintain (Service)

Clean the brake and hub seal areas after use in rainy, snowy, or muddy conditions.
Conduct quarterly inspections of brake wear, flexibility of the self-adjusting mechanism, spring elasticity, and hub sealing integrity.
Overloading is prohibited to protect the shaft, bearings, and braking components.
Apply lubricating grease to the bearings regularly on a cyclical basis for maintenance.

Stable structure; smooth and reliable braking performance when dragging normally.

Corrosion-resistant and wear-resistant treatment for extended outdoor service life

Self-adjusting structure for easier installation and daily maintenance

Reduce driving vibrations for safer and smoother towing

Compatible with various light and medium-sized trailer models

Reduce maintenance frequency and save long-term operating costs
