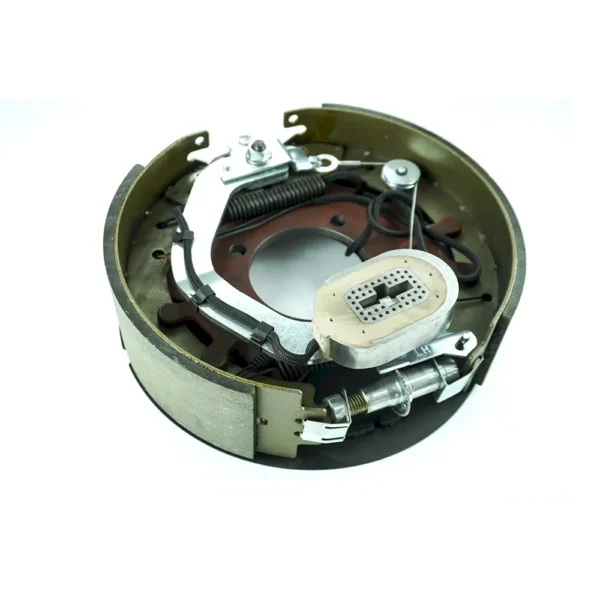

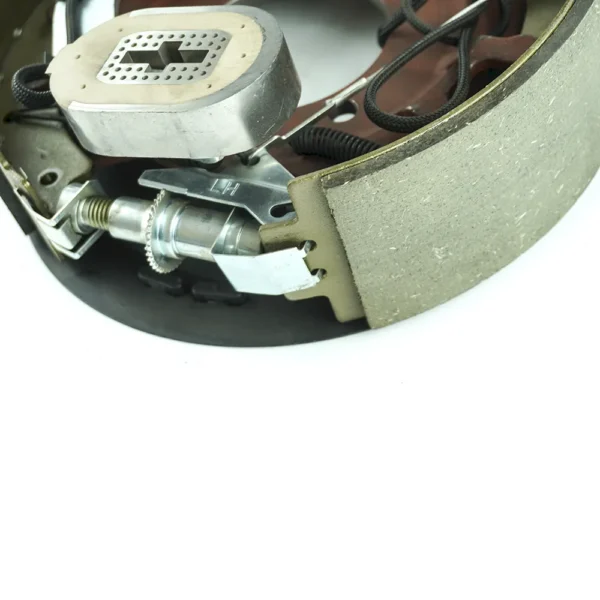

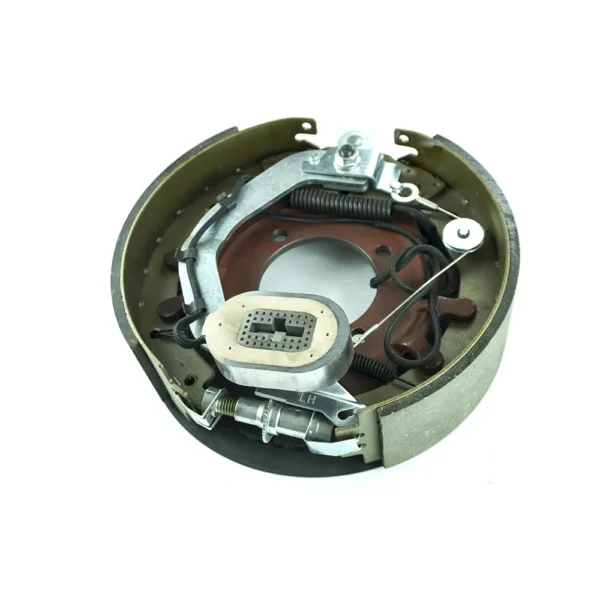

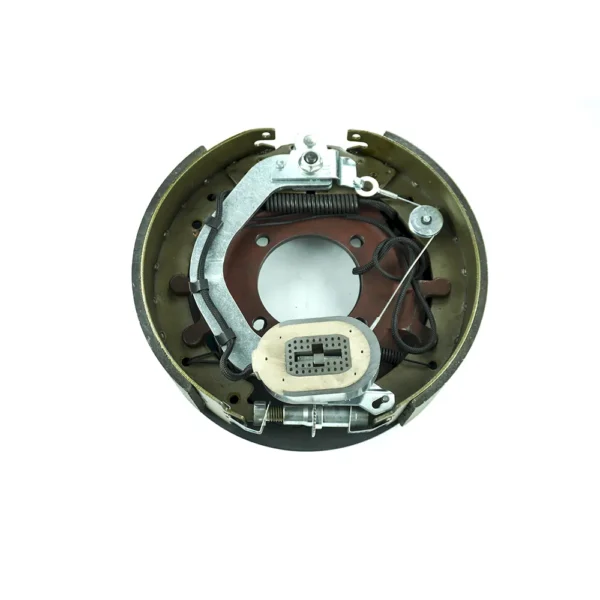

12.25″×2.5″, 8,000 lbs, 4-Bolt Electric Trailer Brake Assembly

Key Features

Electrochemical rust prevention, corrosion-resistant and durable
Modular maintenance for lower costs
8K overload, braking stability
Standard compatibility for easy installation

Product Overview

This 8KE electric brake is the reliable braking solution for 8000 LB-class trailers and RVs. Featuring an electrophoretic rust-proof coating, it offers excellent resistance to salt spray and corrosion, ensuring long-term durability even in coastal or humid environments. Its modular design allows independent replacement of brake pads and back plates, simplifying maintenance and reducing costs. Equipped with standard 8-hole × 6.5-inch bolt holes compatible with mainstream 8K axle hubs, it ensures easy installation and broad compatibility. Delivering stable braking performance under heavy loads while balancing durability and ease of maintenance, it guarantees enhanced travel safety.

Core Specification

Project	Specification Details
Specified Load	8000 LB
Type	Split-type electric drum brake
Caliber	2-3/8 “or 3”
Process Flow	Electric brake backplate + independent brake drum structure
Hub Nut	8 holes × 6.5 inches
Customization	Yes (CAD/DWG)

Matters Need Attention

Included Components

2 sets of pre-lubricated bearing kits (compatible with 8K shaft specifications)
8KE wheel hub assembly + electric braking system (standard 8-hole mounting position)
Matching shaft-beam assembly
9/16–18 specification pivot nuts and fastening screws

Application Scenarios (Applications)

Medium-to-heavy-duty freight trailers, motorhomes, flatbed trailers (with braking safety features)
Agricultural/engineering trailers designed for use in outdoor coastal and humid environments (corrosion-resistant models available)
The axle has been replaced and modified for use in vehicles with a weight capacity of 8,000 pounds.

III. Maintenance (Preservation)

After working in muddy or rainy conditions, promptly clean mud and debris from wheel hub seals and brake assemblies to extend the service life of seals and prevent corrosion.
Quarterly inspection: Check for brake shoe wear, braking performance, condition of the return spring, and whether there is water or mud leakage in the hub seal.
Overloading is strictly prohibited to prevent deformation and damage to the shaft, bearings, or brakes due to excessive load.
Follow the product manual to regularly replenish bearing grease.
Regularly inspect the wiring and the electrophoretic coating on the brake backplate, and promptly repair any damaged areas.
