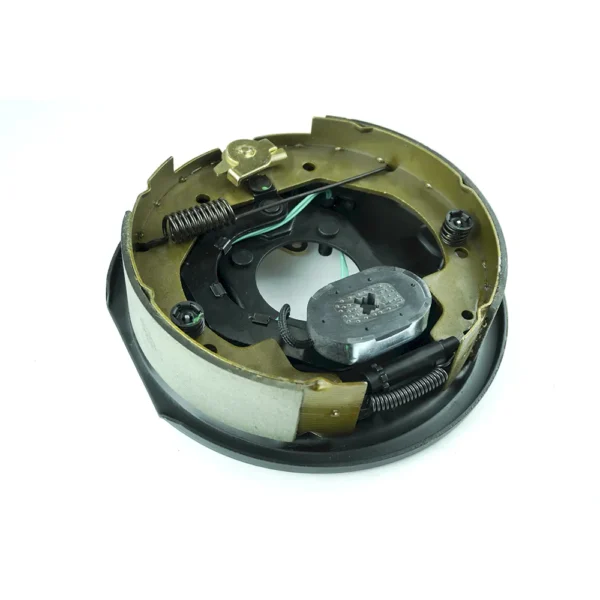

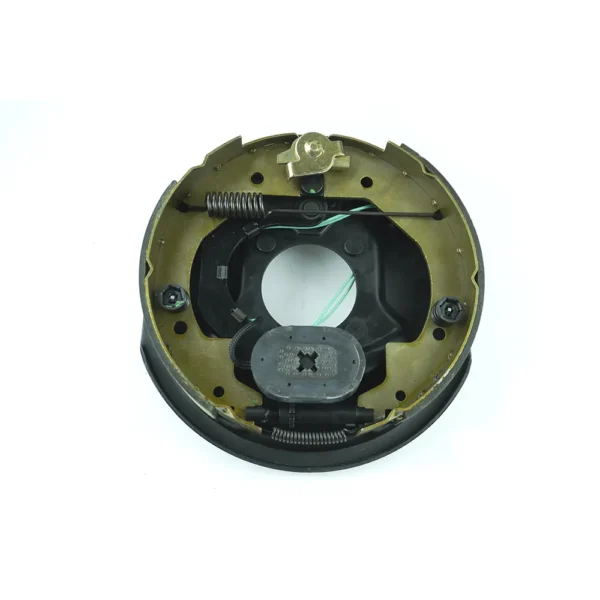

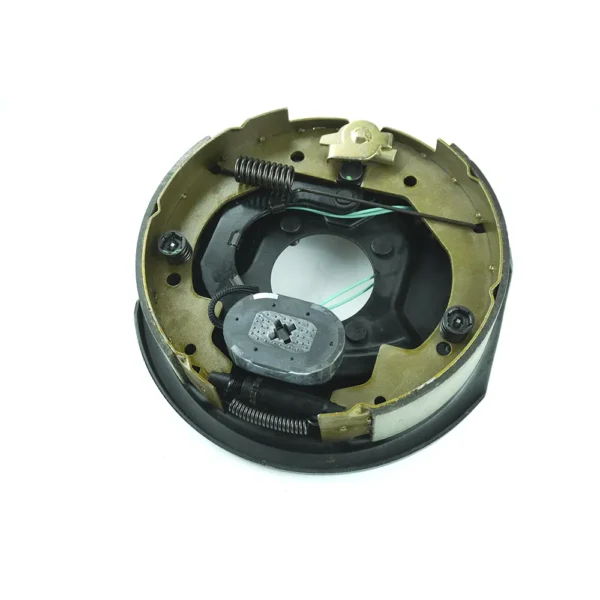

10-inch American-Style Brake

Key Features

Standard 10-inch American specification with high versatility
2 Self-adjusting brake shoes for daily convenience
Corrosion-resistant structure for outdoor durability
Lightweight and compact design for easy installation

Product Overview

The 10-inch American-style drum electromagnetic brake is the standard braking component for 3,500-pound-class light and medium-duty recreational RVs, agricultural trailers, and cargo trailers. Featuring a 10-inch brake drum with self-adjusting brake shoes and an electromagnetic linkage design, its rust-and corrosion-resistant housing ensures a compact structure and smooth braking response. Ideal for outdoor towing, short-distance freight transport, and recreational travel, this versatile unit represents the classic braking assembly for American-style light trailers.

Core Specification

project	Specification Details
specified load	3500LB
type	10-inch drum-type electromagnetic brake (self-adjusting brake shoe assembly for American-style trailers)
caliber	Main shaft for 2.5-inch (63.5 mm) round tube wheel
Process Flow	Precision casting → CNC machining → heat treatment (quenching and tempering) → electrophoretic coating + hot-dip galvanizing for corrosion resistance → assembly; final factory inspection includes brake performance and sealing properties.
Hub nut	Kompatible hole sizes: 5×4.5 inches or 6×5.5 inches.
customization	Supports customizing CAD/DWG drawings

Matters Need Attention

Included Parts

2 × 3.5K pre-lubricated bearing kits
10-inch wheels with electromagnetic braking system (5×4.5/6×5.5 hole spacing)
2.5-inch shaft beam
9/16-inch wheel hub bolts and flange nuts

Safe braking for light and medium-duty cargo trailers as well as recreational motorhomes
Small agricultural trailer, suitable for outdoor anti-corrosion applications
Axle replacement and modification for vehicles in the 3,500-pound category

Maintain (Service)

Clean and seal the brake chamber after use in muddy or rainy conditions to extend service life.
Conduct quarterly inspections of brake wear, spring elasticity, hub seals, and waterproofing of electrical circuits.
Overloading is prohibited to protect the bearings, shafts, and braking components.
Add lubricating grease to the bearings regularly according to their service cycle for maintenance.

The structure is robust and designed to withstand standard loads, ensuring stable towing performance.

Corrosion-resistant and wear-resistant, with long service life in outdoor environments.

Modular assembly for easier installation and routine inspection

Reduce driving vibrations for safer and smoother towing

Available in various sizes for light and medium trailers.

Reduce maintenance frequency and save long-term operational costs
